JACTONE PAFSS® FIRE SUPPRESSION

With a Jactone fire suppression system there are solutions to many different situations. These systems provide a solution for dealing with a fire at source - both minimising the damage of valuable assets and helping to provide a quicker recovery time.

Intelligent fire suppression with Jactone PAFSS

The Jactone PAFSS (Pneumatically Actuated Fire Suppression Systems) technology provides a highly effective and efficient solution for detecting a fire at source and extinguishing it at an early stage before the fire fully develops. This helps to minimise the damage of assets and enable a quicker recovery.

With the range of purpose made solutions manufactured by Jactone, Scan Alarms can provide 24 hour fire protection in many vulnerable locations including - kitchens, transport, electrical enclosures, fume cupboards, CNC machines and much more.

Learn more about the Jactone systems

Specialist fire system for every situation

	Simple to install and cost effective to maintain		Superbly engineered specialist valves and pressure vessels
	Tube is located where the fire risks are		Linear detection tube giving increased responsiveness
	Operated by pneumatic signal		Requires no associated mechanical operation
	No external electrical power supply required		Detection tube is unaffected by dirt, dust, debris and oil
	All discharge pipework is stainless steel		Reliable, vibration resistant push-fit detection tube fittings

The principles of PAFSS operation

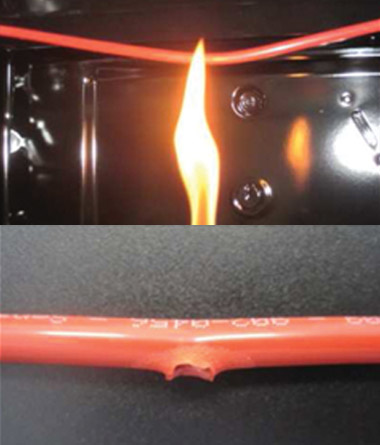

At the heart of the Jactone PAFSS system is a detection tubing which provides a linear heat or flame detector. The specially designed pressurised tubing that upon flame or heat impingement, the tube will depressurise and allow the cylinder valve to open meaning the flame is suppressed. This is a very direct and efficient system for the suppression of a fire before it becomes to big to handle.

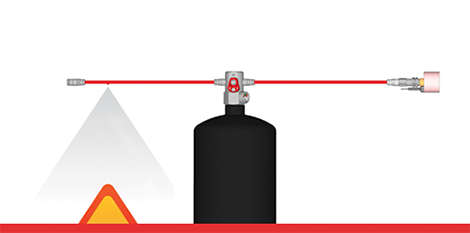

Direct Systems

The direct system that Jactone offers is a efficient and simple self activation system that is ideal for small or enclosed areas.

Upon flame impingement, the tube will rupture at the hottest point causing the tube to depressurise and allow the valve to open on the fire suppression cylinder.

Jactone offers the direct system in a low pressure and high pressure format. Which one is best will depend on the most appropriate extinguishing agent that will be used.

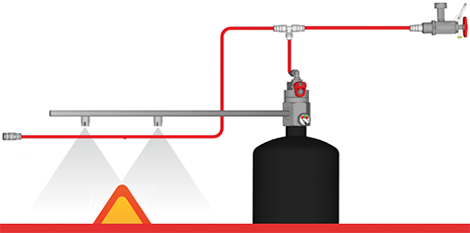

Indirect Systems

The indirect system that Jactone offers is a efficient and simple self activation system that is ideal for large or even open areas.

Upon flame impingement, the tube will rupture at the hottest point causing the tube to depressurise and allow the valve to open on the fire suppression cylinder. The agent being used is then released within a separate pipe and is then targeted on the identified hazard.

The indirect system is also available in both high and low pressure formats. Which one is best will depend on the most appropriate extinguishing agent that will be used.

Speak to us to learn about how the Jactone PAFSS can better protect your property & people from the risks of fire.
